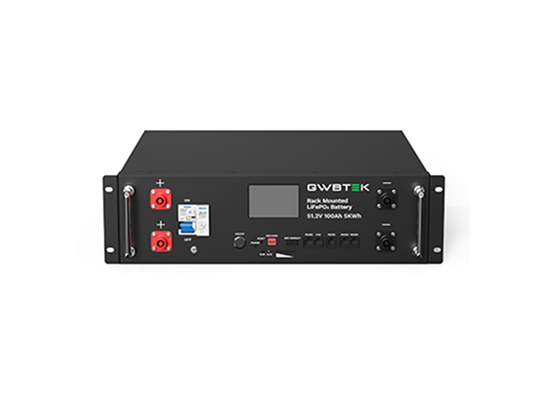

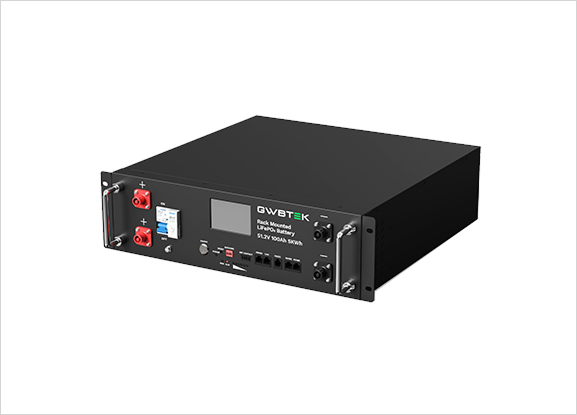

Rack Mounted Battery
GWBTEK 51.2V 100AH rack mounted battery designed for seamless integration into standard server racks. It delivers 5.12kWh of reliable power, making it an ideal plug-and-play building block for solar storage, UPS, and off-grid systems.
-
Rack Mounted
Installation -
Floor Stand
Installation -
Wall Mounted
Installation -
Stackable Mounted
Installation
Benefits
-
Max Capacity up to 163.2Kwh -
Wifi Connection for remote & update -
LCD screen for information display -
Self heating to keep battery warm
Parameters
Rack Mounted
- 51V100AH
| Model | GR-L5.12 |
| Cell Type | LFP |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Operating Voltage | 44.8–57.6V |
| Dimension | 450*440*133mm |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Battery Usable Energy | 5120Wh |
| Communication | RS485, RS232, CAN |
| Display | LCD |
| Charging Temperature | 0°C～60°C |
| Discharge Temperature | -20°C～60°C |
| Environmental Humidity | 5%-95% |
| Ip Grade | IP20 |
| Cycle Life | ≥6000 times (25°C±2°C) |
| Application | Indoor |
| Scalability | Up to 30 units |
| Compatible Inverters | Mainstream inverters |
| Compliance | UN38.3, CE, IEC62619, UL1642 |
| Installations | Rack / wall mounted / stackable mounted |
