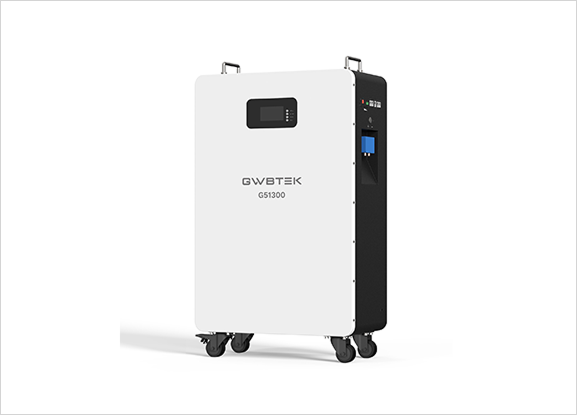

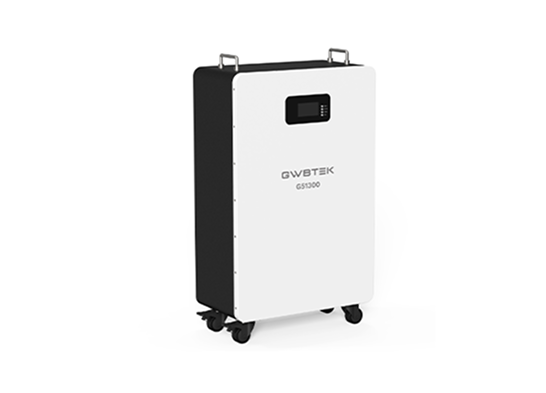

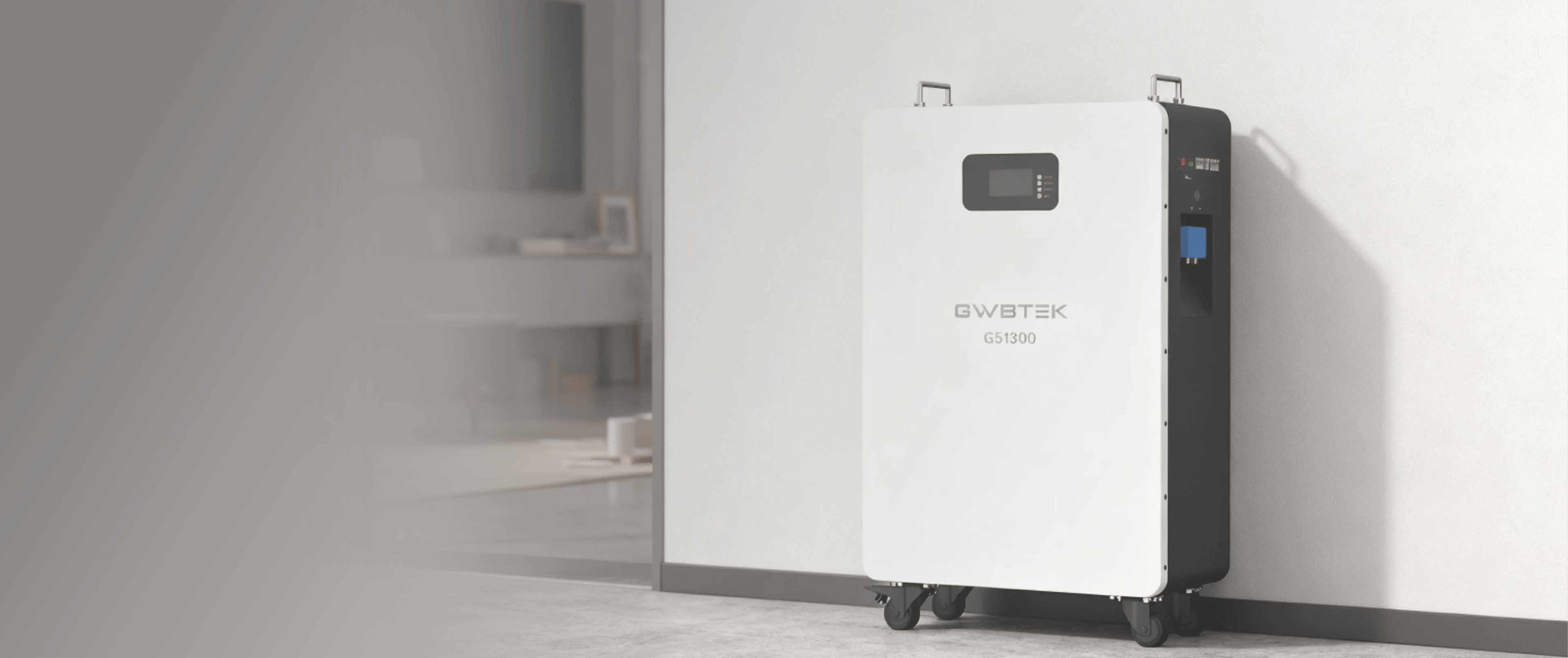

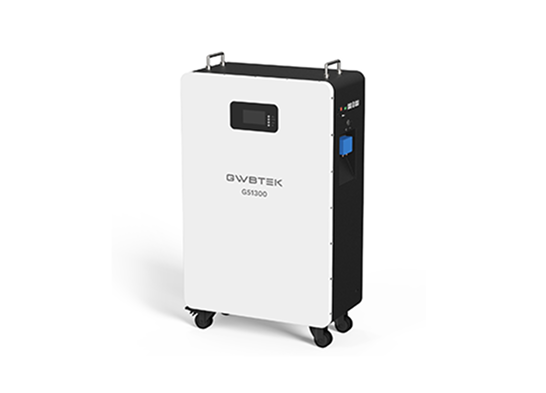

Floor Standing Battery
This 51.2V 314Ah floor-standing battery is a high-capacity LiFePO4 energy storage unit, delivering approximately 16.1 kWh of power. Designed for 48V solar systems, it provides reliable backup power and daily energy storage for homes and businesses. Its robust, stationary design incorporates a sophisticated BMS for safety and is built for a long lifespan, making it an ideal solution for achieving energy independence and resilience.
-
Solar
Self-Consumption -
Backup Power -
On-Grid Power -
Stackable Mounted
Installation
Benefits
-
8000+ cycles Llife -
Max capacity up to 241.1KWh -
Self Heating to keep battery warm -
IP65 waterproof option
Parameters
Floor Stand
- 51V300AH
| Model | G51300 |
| Cell Type | LFP |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Operating Voltage | 44.8–57.6V |
| Dimension | 718480250mm |
| Max. Charge Current | 150A |
| Max. Discharge Current | 150A |
| Battery Usable Energy | 16076Wh |
| Communication | RS485, RS232, CAN |
| Display | LCD |
| Charging Temperature | 0°C～60°C |
| Discharge Temperature | 20°C～60°C |
| Environmental Humidity | 5%-95% |
| Ip Grade | IP20 |
| Cycle Life | ≥8000 times (25°C±2°C) |
| Application | Indoor, outdoor option |
| Scalability | Up to 15 units |
| Compatible Inverters | Mainstream inverters |
| Compliance | UN38.3, CE, IEC62619, UL1642 |
| Installations | Floor stand |
