Indoor & Outdoor Cabinet
Energy Storage System
Energy Storage System

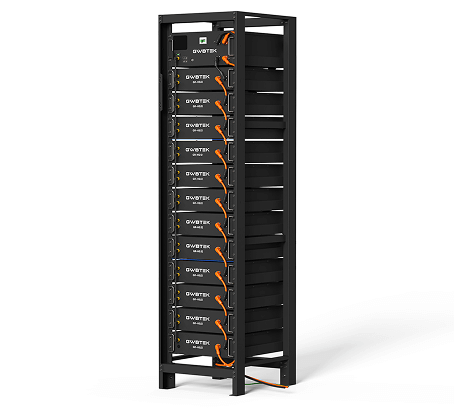

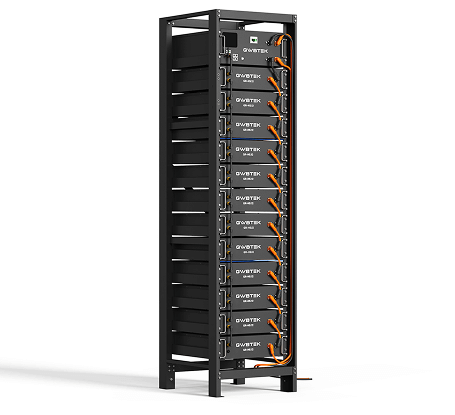

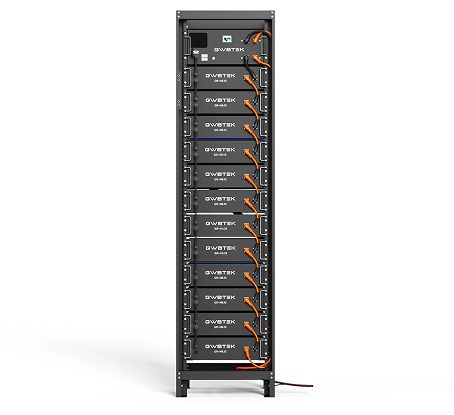

GWBTEK high-voltage LiFePO4 battery rack designed for commercial energy storage, the capacity can be from 20.48KWh to 61.44KWh, max 6 clusters in parallel, and out door water proof with inveter option.
-

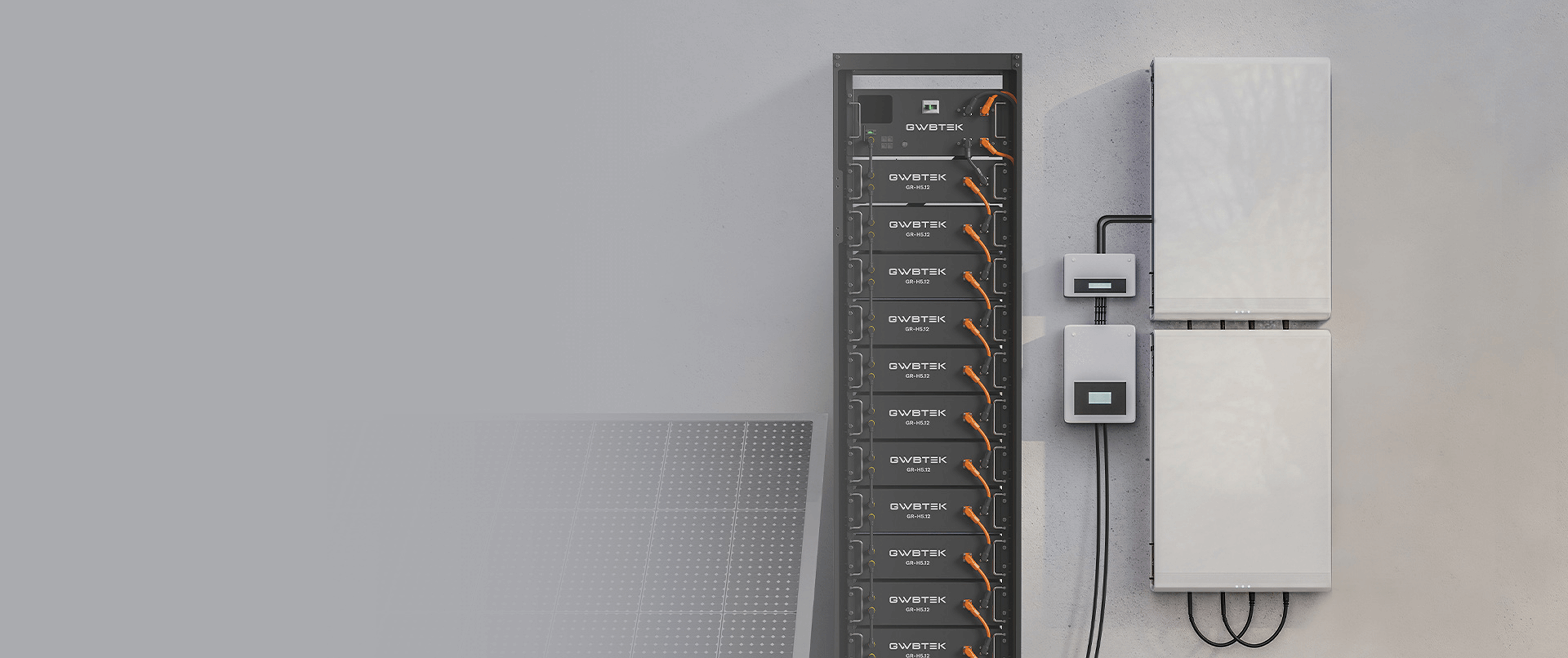

Indoor & Outdoor
Option -
Solar backup -
off/on Grid -
Peak Shaving
Benefits
-
3U Quik plug design & easy cable conenction -
Flexible battery capacity expansion -
Wifi conenction -
Max constant discharge current 1C
Parameters
| Battery Model | GH512-20 | GH512-25 | GH512-30 | GH512-35 | GH512-40 | GH512-45 | GH512-50 | GH512-55 | GH512-60 | |
| Number Of Modules | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| Battery Usable Energy | 20.48kWh | 25.6kWh | 30.72kWh | 35.84kWh | 40.96kWh | 46.08kWh | 51.2kWh | 56.32kWh | 61.44kWh | |
| Operating Voltage | 179.2-224.6V | 224.0-280.8V | 268.8-337.0V | 313.6-393.1V | 358.4-449.3V | 403.2-505.4V | 448-561.6V | 492.8-617.8V | 537.6-673.9V | |
| Weight | 327.5kg (722lbs) |
370.5kg (816.8lbs) |
413.5kg (911.6lbs) |
456.5kg (1006.4lbs) |
499.5kg (1101.2lbs) |
542.5kg (1196.0lbs) |
585.5kg (1290.8lbs) |
628.5kg (1385.6lbs) |
671.5kg (1480.4lbs) |
|
| Dimensions | 620*630*2200mm (24.4*24.8*87.4in) | |||||||||
| Battery Type | LFP | |||||||||
| Max. Charging Current | 100A | |||||||||
| Installation | Floor stand | |||||||||
| Charging Temperature | 0-50°C(30-122°F) | |||||||||
| Discharge Temperature | -15-50°C(5-122°F) | |||||||||
| Nominal Capacity | 95%RH (No condensation) | |||||||||
| Ip Rating | IP20 | |||||||||
| Cycle Life | 6000 Cycle | |||||||||
| Scalability | Max 12 modules per stack, 4 stacks in parallel | |||||||||
| Application | ON Gird / ON Gird + backup / OFF Gird | |||||||||
| Compatible Inverters | Refer to compatible inverter list (Compatible with major PCS Brands) | |||||||||
| Display | SOC status indicator, LED indicator, LCD display | |||||||||
| Communication | RS485, RS232, CAN | |||||||||
| Functions | Remote upgrade, EMS, Real-time monitoring of local data | |||||||||
| Standard Compliance | UN38.3, IEC62619, IEC62040-1, IEC61000-6-2, IEC61000-6-4, IEC62477-1 (More available upon request) | |||||||||
| Ordering And Deliverable Part | RT-512-QC-A, RT 512-H-BCU, Rack: RT-R12, Display: RT-DS-7 | |||||||||
