Outdoor Cabinet
Energy Storage System
Energy Storage System

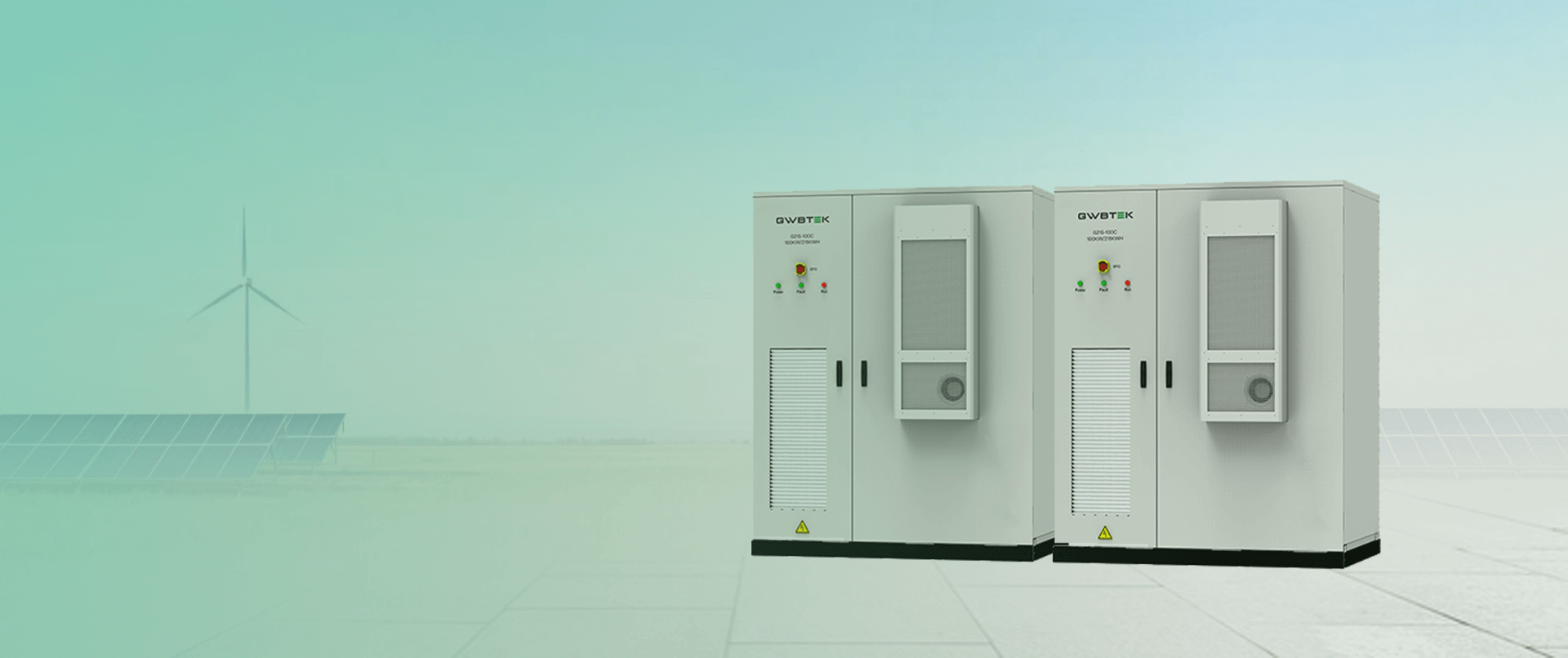

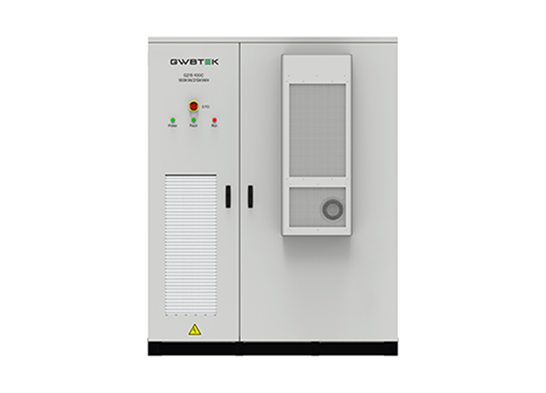

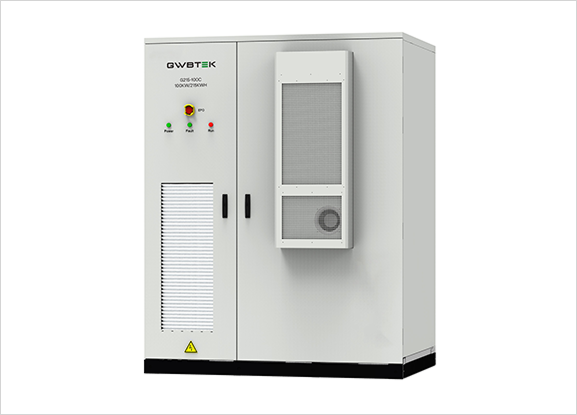

GWBTEK Outdoor Cabinet Energy Storage System is a large-scale, all-in-one solution for commercial and industrial applications. Housed in a durable, weatherproof enclosure, it provides substantial energy storage for solar integration, backup power, and grid support.
-
Solar Energy -
Wind Energy -
Grid Stability -
Industry Backup
Benefits
-
8000+ cycles Llife -
Max capacity up to 241.1KWh -
Self Heating to keep battery warm -
IP65 waterproof option
Parameters
| Model | G253-100 |
| Battery Rated Capacity | 253kWh |
| Battery Rated Voltage | 768V |
| Battery Voltage Range | 672V～864V |
| Battery Type | LFP |
| Battery Cell Capacity | 314Ah |
| Maximum Charge Current | 140A |
| Maximum Discharge Current | 140A |
| Rated AC Power | 100kW |
| Rated AC Current | 144A |
| Rated AC Voltage | 400V, 3W+N+PE |
| Rated AC Frequency | 50/60Hz |
| THDi | <3 (Rated power) |
| Power Factor | -1 leading to +1 lagging |
| THDv | <3% (linear load) |
| Degree Of Protection | IP55 |
| Isolation Mode | Isolation transformer |
| Shutdown Self-discharge | <100W (Without transformer) |
| Display | LCD |
| Relative Humidity | 0 ～ 95% (No condensation) |
| Noise | <78dB |
| Ambient Temperature | -25°C to +60°C(Derating above 45°C) |
| Cooling Mode | Intelligent air-cooled |
| Altitude | 3000m(> 2000m derating) |
| Communication Interface | CAN / Ethernet / 485 |
| Size (W * D * H) | 180012002300mm |
| Weight (Approx.) | 3260kg |
